House Lighting Reimagined!
HL200
WASH
The XBlack HL200 is a next-generation house light built for precision, flexibility, and performance. Drawing a maximum of only 150 watts (average 72W), the HL200 delivers an impressive 4,432 lumens of output from its advanced RGBWAL color engine — offering rich, accurate color and exceptional white-light rendering across any environment. Designed for ultimate versatility, the HL200 ships with three interchangeable lenses — 36°, 68°, and 95° — allowing perfect beam shaping for every space. Built-in CCT macros (2700K, 3200K, 4800K, 5600K, 6500K) make color temperature adjustments effortless, from warm ambiance to bright, daylight precision. Control is seamless and installation-ready, featuring 5-pin DMX, LumenRadio™ Timo wireless DMX, and RJ45 connections. Mounting options include both large and small adjustable yokes with integrated eyelet safety points, ensuring fast, secure installation in any venue. Available in black or white, the HL200 is engineered for excellence in houses of worship, theaters, broadcast rooms, and film studios — bringing modern design, powerful performance, and effortless control together in one refined fixture.
PRODUCT PERFORMANCE
The HL200 brings professional-grade performance and elegant design together — reimagining what house lighting can be.
PRODUCT SPECS
OPTICAL
-
Full Color LED (RGBWAL), convection and fan cooled
-
Interchangeable lenses 36°, 68°, 95° options in the box
-

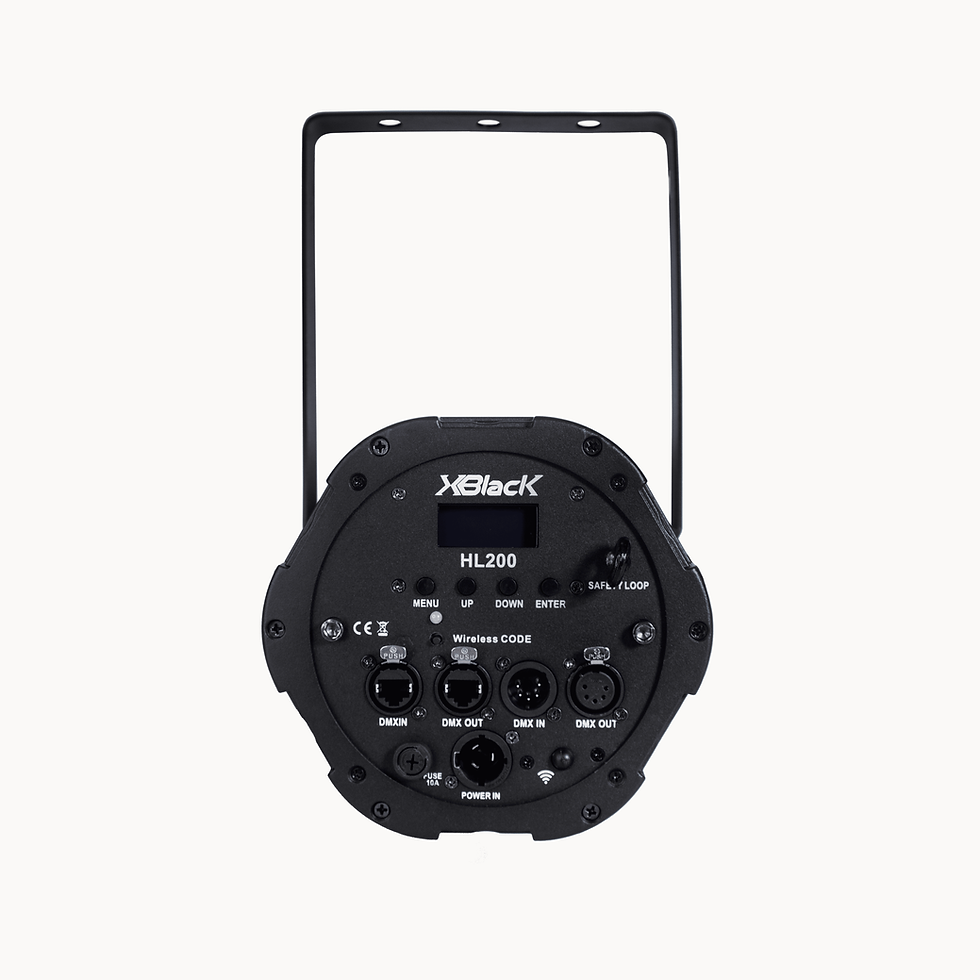

5-pin XLR , RJ45 and LumenRadio Wireless DMX options
-
Tall and Short included yoke for pipe mounting, or suspend from integrated loop-eye
-
Virtual Color wheel for infinite color mixing options
-
Color Temperature Presets from 2700 K to 6500 K
-
6-bit dimming for ultra-smooth fades
-
RDM (Remote Device Management) for added programming flexibility
-
Flicker free on camera
DYNAMIC EFFECTS
-
Dimmer: analog
-
Shutter/Strobe: Electronic
-
Strobe Rate: 1 to 25 Hz
-
Standalone Color Mixing: Yes
-
CCT Presets: Yes
-
Dim Modes: 4
-
Built-in Automated Programs: Yes
CONTROL/CONNECTIONS
-
Power Input: True 1
-
Data Connectors: 5-pin XLR, RJ45, Wireless
-
Cable Length (power): 3 ft (1 m)
ELECTRICAL
-
Input range (AC 100-240v 50/60Hz)
-
Max consumption: 150 watts/ Avg. power consumption 72w
COOLING
-
Advanced cooling system: Utilizes both convection cooling and low speed fans
PHYSICAL
-
6.1in x 14.9in (not including the yoke)
-
Weight: 12LBS 12OZ
-
Exterior Color: Black or White
